Stackers

Compliance conformité-européene

Mobile conveyor stackers in Australia & Beyond

Comet Equipment’s mobile conveyor stacker range is a best-in-class mobile plant solution distinguished by its quality design, versatility and safety assurance. A superior product backed by Comet Equipment’s commitment to quality, service and customer care, the mobile conveyor stacker will improve your business’ efficiency with a no-nonsense approach. Each stacker is designed to meet the demands of various industries, providing safe and efficient material handling solutions.

FEATURES

Easily transportable
Superior use across various applications, including crushed aggregates, topsoil, sand, coal and bark
Variable speed and adjustable heights, allowing for use with crushers and screeners
CE Certified

Specifications

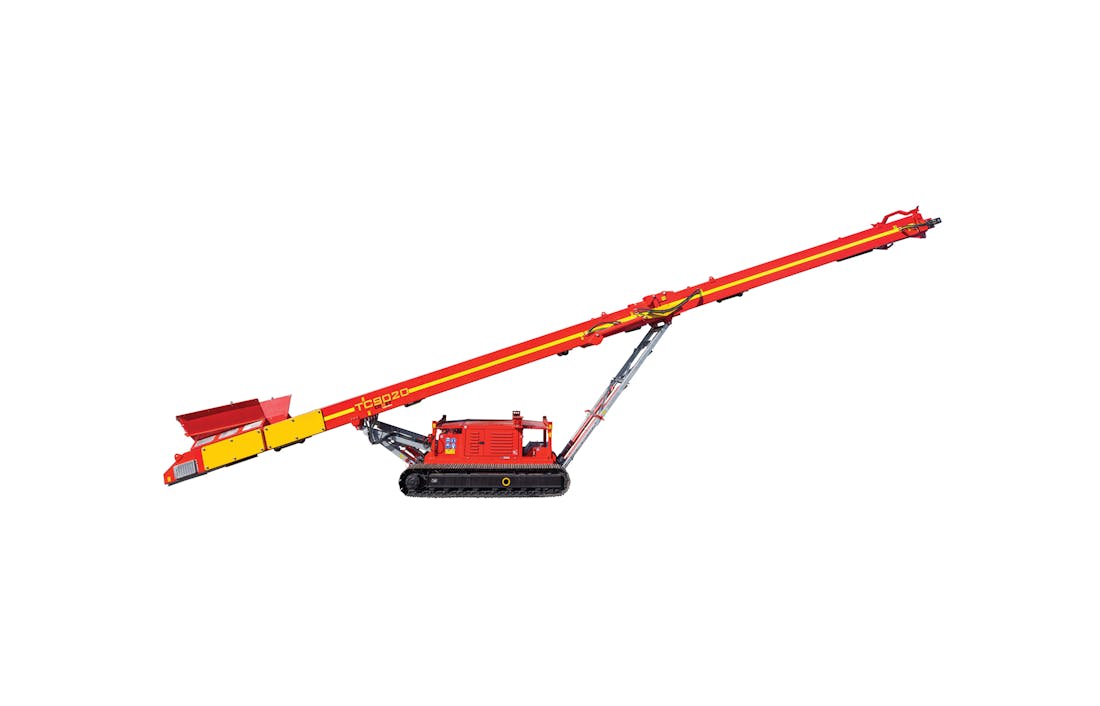

TC9020

TC9025

TC9020 TC9025

Specifications

Imperial Metric
Belt Length 60 ft 18.3 m
Discharge Height 29.33 ft 8.94 m
Belt Width 35.4 in 900 mm
Belt Type EP 500 5PLY EP 500 5PLY
Production Capacity Up to 500+ TPH Up to 500+ TPH
Stage 3A: CAT C2.2 50 hp 37.3 kW
Stage V/Tier 4: Deutz TD.2.9 L4 74hp 55.4 kW
Fuel Tank Volume 40 gal 150 L
Working Time 16 h 16 h
Track Speed 0.62 - 0.68 mph 1.0 - 1.1 km/h
Track Maximum Carry Weight 39,683 lb 18,000 kg
Battery 12V Negative Earth 12V Negative Earth
Length 39 ft 11.9 m
Width 7.25 ft 2.21 m
Height 8.417 ft 2.565 m
Tare Weight 22,487 lb 10,200 kg
Shipping Container 40’x9’6” 40’x9’6”

Specifications

Imperial Metric
Belt Length 75.5 ft 23 m
Discharge Height 34.68 ft 10.57 m
Belt Width 35.4 in 900 mm
Belt Type EP 500 5PLY EP 500 5PLY
Production Capacity Up to 500+ TPH Up to 500+ TPH
Stage 3A: CAT C2.2 60 hp 44.7 kW
Stage V/Tier 4: Deutz TD.2.9 L4 74hp 55.4 kW
Fuel Tank Volume 58 gal 220 L
Working Time 20 h 20 h
Track Speed 0.62 - 0.68 mph 1.0 - 1.1 km/h
Track Maximum Carry Weight 39,683 lb 18,000 kg
Battery 12V Negative Earth 12V Negative Earth
Length 38.7 ft 11.8 m
Width 2.21 m 7.25 ft
Height 2.565 m 8.415 ft
Tare Weight 28,660 lb 13,000 kg
Shipping Container 40’x9’6” 40’x9’6”

Other Product Details

Comet’s stacker conveyor range stands out as a top-tier mobile aggregate stacking solution that boasts exceptional design, versatility and safety, underscored by its CE certification. Our stackers are engineered for continuous use in demanding environments, providing reliable performance whether handling aggregates, sand or coal. Our stackers are also built with high-quality materials to ensure longevity and minimal maintenance, making them a cost-effective choice in the long-term.

Need the right equipment? Talk to us.

Get a quote
Carousel comet-web-64

Frequently Asked Questions

What safety features are important in a stacker conveyor?

What types of stackers are available for purchase in Australia?

How does a stacker reclaimer work in a mining operation?

What are the benefits of using a radial stacker in material handling?

Where can I find a stacker conveyor for sale in Australia?

What features should I look for in a mobile stacker?

How do I choose the right stacker conveyor for my needs?

What are the applications of a sand stacker in construction?

Where can I buy a radial stacker conveyor in Australia?

What are the advantages of using a conveyor belt stacker in coal handling?

How can an aggregate stacker improve efficiency in my operation?

What maintenance is required for a mining stacker?

Are there used stacker conveyors available for sale in Australia?

Discuss Your Requirements Today

If you’re looking for a radial stacker conveyor for sale or need something specific like a sand stacker, coal stacker or aggregate stacker, Comet Equipment can provide the mobile stacker you need. Contact us today to discuss your requirements with our team.
